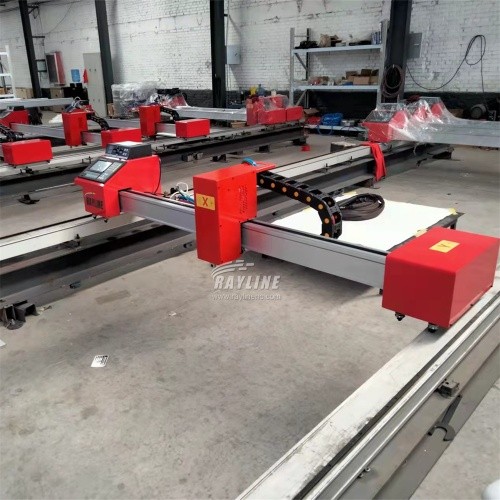

The portable gantry CNC cutting machine adopts double-sided drive and can cut parts of any plane shape formed by straight lines and arcs. It can use flame and plasma to cut steel plates, stainless steel and aluminum plates, etc. It has the characteristics of convenient movement, simple operation, and flexibility. The cutting accuracy is not inferior, and the one-time investment is relatively low. Therefore, it has been more and more used in the steel plate blanking process.
| Product Name | Portable CNC Cutting Machine | ||
| Brand | RAYLINE | ||
| Model | RA-XF1525 | RA-XF1530 | RA-XF2530 |
| Effective Cutting Range(mm)( Customized) | 1500*2500 | 2500*3000 | 2500*3000 |
| Total Weight (KG) | 110 | 120 | 120 |
| Max. Cutting Speed | 15000mm/min | 15000mm/min | 15000mm/min |
| Cutting Thickness(Flame)(mm) | 6-160 (O2/C3H8 or C2H2) | 6-160 (O2/C3H8 or C2H2) | 6-160 (O2/C3H8 or C2H2) |
| Torch Flame | Electric height adjustment(±60mm) | Electric height adjustment(±60mm) | Electric height adjustment(±60mm) |
| Control System | STARFire plasma cutting system | STARFire plasma cutting system | STARFire plasma cutting system |
| Type of Gas | C3H8 C2H2 | C3H8 C2H2 | C3H8 C2H2 |
| Working Voltage ( Customized) | AC220/50HZ | AC220/50HZ | AC220/50HZ |
| Software Support | FASTCAM,AutoCAD,etc | FASTCAM,AutoCAD,etc | FASTCAM,AutoCAD,etc |
| Drive System | Stepper motor | Stepper motor | Stepper motor |
| Instruction Format | G code | G code | G code |
| Move Precision | ±0.2mm/m | ±0.2mm/m | ±0.2mm/m |
| Emergency Stop | YES | YES | YES |
| ARC | Untouched arc striking | Untouched arc striking | Untouched arc striking |
| Plasma Power Supply | China Huayuan 63/100/160/200A(Optional Hyper therm --45A,65A,85A,105A,125A,200A) | ||
| Processing Materials | Iron, steel aluminum sheets, galvanized sheets, Titanium plates | ||
1. Low Noise And High Running Accuracy.
2. Occupies A Small Place.
3. Operates With High Efficiency.
4. Cuts Automatically With High Precision And Uses Materials Effectively.
5. It Is Of Compacted Design, Light Weight And Is Small In Size.
6. It Is Easy To Move, Suitable For The Site Indoor Or Outdoor.
7. The Control System Is Independently Designed And Developed With Optimized Programming,Easy To Learn And Operate.
8. The Operation Interface, Simple And Clear, Can Store Over 80 Programs.
9. LCD Screen Of Dynamic And Static Display Of Graphics Can Convert The CAD File To The machine.

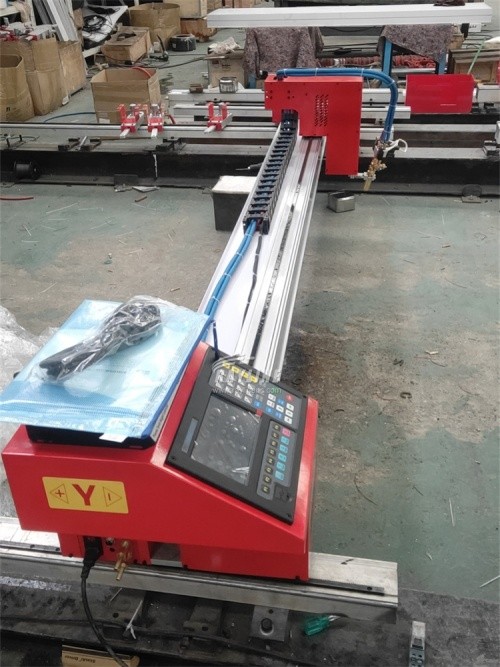

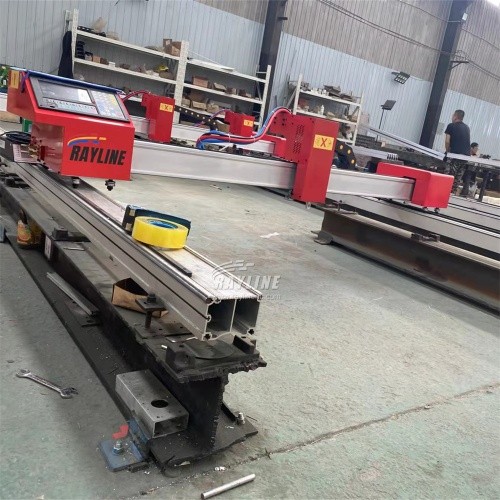

RAYLINE Portable CNC Cutting Machine has a telescopic arm structure. The chassis and cantilever are made of aluminum alloy material, which is light in weight and convenient to move. The unique design and compact shape structure make it have a small footprint, stable operation and high cutting accuracy; this model It can be equipped with flame or plasma cutting. It is a high-efficiency and energy-saving cutting equipment. It is the lightest and most economical type of CNC cutting machine. It is an upgraded product of the copy cutting machine and the ordinary portable CNC cutting machine.
Portable CNC cutting machine with automatic ignition and automatic height adjustment. It is integrally mobile, and can be used in the same way as a "small sports car", which can be directly placed on the steel plate to be cut, which is convenient and flexible to use; suitable for precision cutting of carbon steel, stainless steel and non-ferrous metal plates of various thicknesses; flame cutting equipment Capacitor automatic height adjustment device, plasma cutting is equipped with arc voltage automatic height adjustment device, which can more effectively control the cutting height and cutting quality, and is especially suitable for CNC special-shaped cutting of uneven plates.
